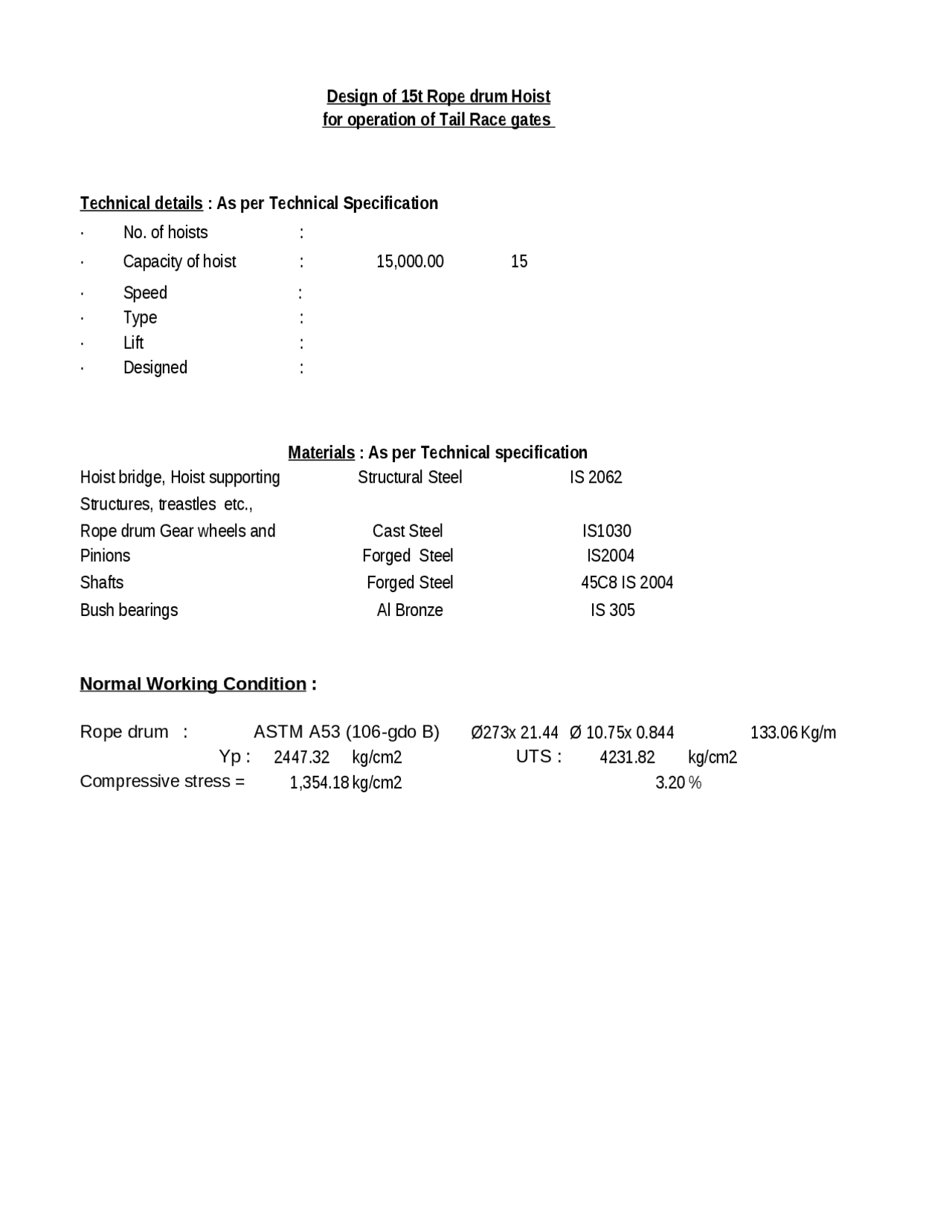

Design of 15t Rope drum Hoist
for operation of Tail Race gates
:
: 15,000.00 15
:
:
:
:
Hoist bridge, Hoist supporting Structural Steel IS 2062
Structures, treastles etc.,
Rope drum Gear wheels and Cast Steel IS1030
Pinions Forged Steel IS2004
Shafts Forged Steel 45C8 IS 2004
Bush bearings Al Bronze IS 305
Rope drum : ASTM A53 (106-gdo B) Ø273x 21.44 Ø 10.75x 0.844 133.06 Kg/m
Yp : 2447.32 kg/cm2 UTS : 4231.82 kg/cm2
Compressive stress = 1,354.18 kg/cm2 3.20 %
Technical details : As per Technical Specification
· No. of hoists
· Capacity of hoist
· Speed
· Type
· Lift
· Designed
Materials : As per Technical specification
Normal Working Condition :
